DETAILS

Features of C/Z purlin machine:

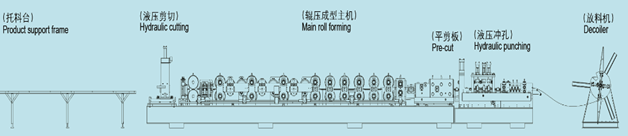

Flow chart: De-coiler – Leveling device — pre- punching and pre-cutting – roll forming parts – stack

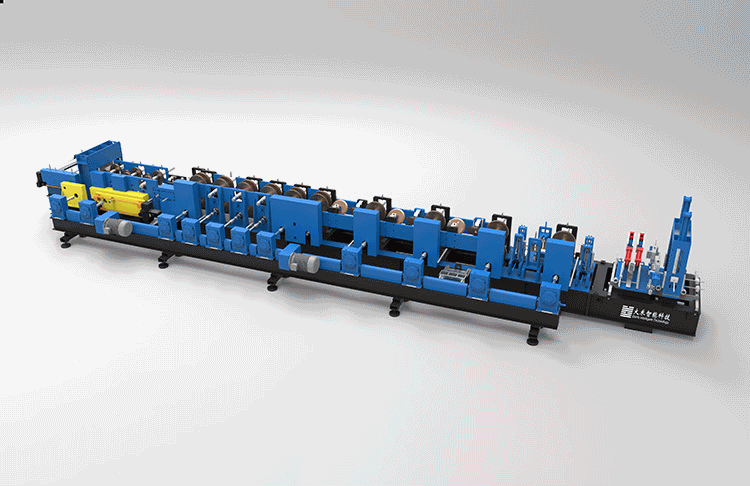

Driven By Full Automatic C/Z Purlin Roll Forming Machine FX350

Purlin size:

Driven By Full Automatic C/Z Purlin Roll Forming Machine FX350 Driven By Full Automatic C/Z Purlin Roll Forming Machine FX350

Machine Specifications
WeightAbout 18 tons
SizeAbout 12.8m x2m x1.95m

(length x width x height)

ColorMain color: blue
Warning color: yellow,orange
Suitable Raw Material
Materialcold rolled coil , hot rolled coil, galvanized coil
Thickness1.0-3.5mm
Coil widthAccording to products size
Yield strength350Mpa~550Mpa
Main Technical Parameters
Quantity of forming rollers stations23 Stations
Diameter of rollersΦ360MM
Diameter of shaftsø70-95mm
Roll Forming Speed30m/min
Production Speed12-18m/min(depends on quantity of punching)
Forming rollers materialCR12 mould steel, with quenched treatment
Cutter materialCR12 mould steel, with quenched treatment
Controlling systemPLC and Converter
Electric power requirementMain motor power: 30KW
Hydraulic unit motor power: 11KW
Electric voltageAccording to customers requirement



Main Components:

  1. Hydrulic De-coiler

De-coiler Type: by automatic

Weight capacity: 8T

  1. Feeding and Leveling Device: It used for making the material flat before feeding into the roll forming machine.
  2. Pre-punching device

Punching type: by hydraulic

Punching quantity: total 3 sets cylinders 6holes. (Can be increased by customize)

  1. Pre-shearing

It used to cut raw materials before roll forming.

5.Main roll former

Driven type: By gear boxes

Speed of forming: 0-30m/min

Working Speed: 12-18m/min

Roller: About 23 groups rollers

Roller Material is Cr12 mould steel;

Shaft: Shafts of rollers are tooled by grinding machine for two times to ensure the precision of final product. Material of main shaft is 40Cr.

Changing sizes: Full-automatic (change sizes automatically by PLC control, pressing button is compatible)

Adopt fast C/Z interchanging system

Quick C/Z interchanging only with 3 steps,around 5mins.

  1. Hydraulic Post- cutting

No need to replace the cutting blades when purlin sizes are changed.

  1. Product support frame
  2. PLC Control System
